TECHNOLOGY

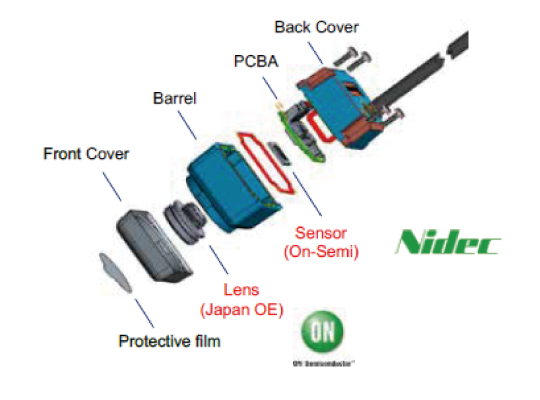

Nidec Corporation is closely associated with approximately 300 group companies all over the world. Nidec is the world's No.1 comprehensive motor manufacturer handling "everything that spins and moves", miniature to gigantic. Aspiring to achieve still higher growth, each group company is enhancing its technical capabilities and competitive edge, while Nidec is positively striving in the area of M&A for companies that have highly-reputed engineering capabilities in motor-related fields.
ON Semiconductor is driving energy efficient innovations, empowering customers to reduce global energy use. The company is a leading supplier of semiconductor-based solutions, offering a comprehensive portfolio of energy efficient power management, analog, sensors, logic, timing, connectivity, discrete, SoC and custom devices. ON Semiconductor operates a responsive, reliable, world-class supply chain and quality program, a robust compliance and ethics program, and a network of manufacturing facilities, sales offices and design centers in key markets throughout North America, Europe and the Asia Pacific regions.
CERTIFICATION : CAMERA
CERTIFICATION : PARKING SENSOR
SHARPNESS : 800 TV-LINE
The ISO 12233 Chart is the I3A/ISO standard for measuring the resolution of electronic still imaging cameras. The chart we are using is a very expensive,finely printed variation of the ISO 12233 standard that extends resolution to 4,000 lines per picture height (l/ph) and features other benfits as well. This chart serves as a good visual indicator of sharpness as well as CA (Chromatic Aberration) and distortion.
IMAGE EVALUATION
400 LUXLIGHT SOURCE: D65
Delta E: smaller is better.
Saturation:
depends on human favor.
SNR: the higher number is better.
iAUTOEYES
SATURATION: 85.09%
DELTA E: 19.6
SNR = 44.6dB
OTHERS
SATURATION: 81.01%
DELTA E: 27.5
SNR = 37.17dB
Delta E: smaller is better. Saturation:
depends on human favor.
SNR: the higher number is better.
5 LUXLIGHT SOURCE: D65
Delta E: smaller is better.
Saturation:
depends on human favor.
SNR: the higher number is better.
iAUTOEYES
SATURATION: 45.58%
DELTA E: 17.5
SNR = 24.65dB
OTHERS
SATURATION: 7.86%
DELTA E: 67.9
SNR = 16.27dB
Delta E: smaller is better. Saturation:
depends on human favor.
SNR: the higher number is better.
0.1 LUXLIGHT SOURCE: D65
Delta E: smaller is better.
Saturation:
depends on human favor.
SNR: the higher number is better.
iAUTOEYES
SATURATION: 45.47%
DELTA E: 17.5
SNR = 22.06dB
OTHERS
SATURATION: 8.96%
DELTA E: 68.5
SNR = 17.78dB
Delta E: smaller is better. Saturation:
depends on human favor.
SNR: the higher number is better.
6500KCOLOR
TEMPERATURE
1500 LUX
100 LUX
15 LUX
0.5 LUX
500 LUX
50 LUX
1.2 LUX
0.1 LUX
3000KCOLOR
TEMPERATURE
100 LUX
10 LUX
50 LUX
1 LUX
WATERPROOF : IP69K
IP6X
IPX9K

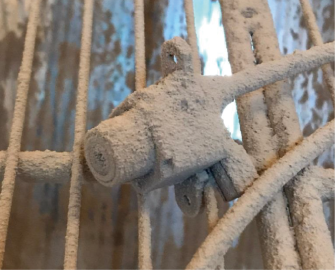

The IP69K rating provides protection against ingress of dust and high temperature, high pressure water .

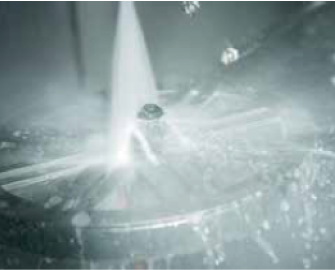

The water intrusion tests themselves are done by placing the product on a turntable with a rotational speed of 5 ±1 revolutions per minute. The product is then sprayed at close range at a rate of approximately 4 gallons/16 liters per minute with water pressure of between 1160-1450 psi, at a temperature of 176°F/80°C.
The nozzle from which the water is sprayed is held between 4 and 6 inches from the product, at a variety of angles. Following this rigorous testing procedure, the product is deemed as having successfully achieved the rating if it completely resists water ingress.
TEMP RANGE : -40C°~+105C°
High-Low Temp
Thermal Shock
High and low temperature test chamber applying to electrical engineering, electronic products, components and the adaptive test of materials during storage, transportation and use in high and low temperature.
Thermal Shock Chamber be used for testing most commercial products to see how they withstand drastic temperature changes. Simply to say, a thermal shock chamber will subject a product to the most extreme temperature conditions, instantly.

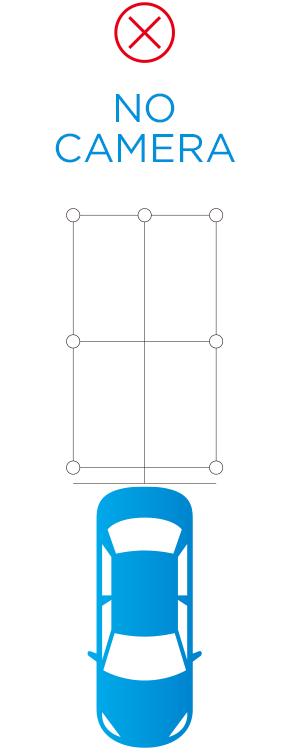

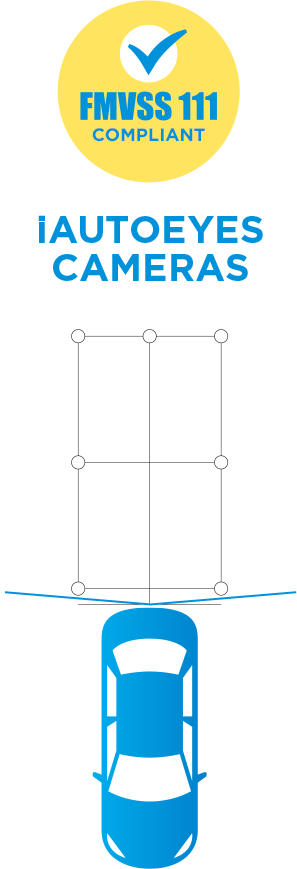

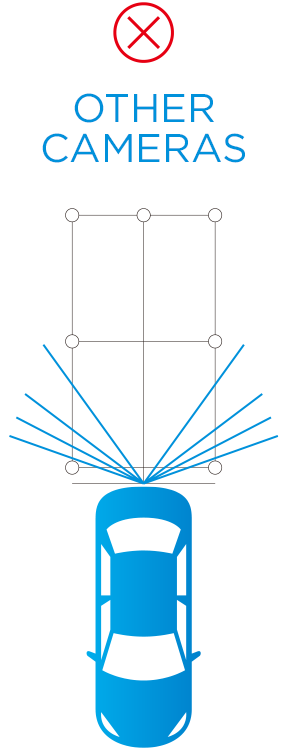

COMPLIANCE WITH : FMVSS 111
All camera products meet the FMVSS111 by NHTSA.
We offer plug-and-play solutions for when an OEM camera has been removed.
These systems allow for FMVSS 111-compliant cameras to be used with OEM
in-dash LCD screens and infotainment systems.
iAUTOEYES tests its camera systems at a variety of heights and positions on the vehicle to help ensure compliance and safety for drivers and pedestrians.
PLUG AND PLAY
iAUTOEYES tests its camera systems at a variety of heights and positions on vehicle to help ensure the camera could fit directly.
